IP CAMERA

IP CAMERA

Click here for details.

IP CAMERA

Product ID: I-315

Send Inquiry
Model I-315
Video Compression H.264 / Motion JPEG
Video Resolution 2M: 1600x1200
Image Layout source image, table view (video conference mode)360° double broad view
360° 3 PTZ views with source
360° quad view, 360° broad view (Ceiling mount mode)
180° broad view with cropping function
180° 3 PTZ views with source
180° 2 PTZ views with broad view. (Wall mount mode)
Bit Rate 2M ~ 6Mbps (CBR/VBR configurable)
Frame Rate 15FPS @ 1600x1200
Image Device Color CMOS Sensor
Lens Type Fish-Eye Lens, FOV=185° (D/H/V), F=2.0mm, f=1.25mm
Day/Night function Mechanical IR cut filter
Video Control Controllable frame/bit-rate(bandwidth)
VBR/CBR control, Backlight compensation
Image Adjustment Brightness, Saturation, Sharpness, Exposure, White balance control
Event System Trigger : motion detecton Action : file upload via FTP, e-mail and Micro SD card Notification via e-mail
Local storage Micro SD card (not included) , support SDHC, schedule recording, full over-write
Network Interface 10 BASE-T/100 BASE-TX
PoE IEEE802.03 af
Wireless IEEE802.11n (option)
Protocols HTTP, HTTPS, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, Bonjour,UPnP
Audio Capability 1x line in, 1x line out, built-in microphone
Audio Compression u-Law PCM 8KHz
Power Supply AC/DC switching power adapter, Input : AC100~240V, output : DC12V/2A (option)
Security Password protection, https encryption, user access log
Power Consumption 5W
Operation Temperature 0°C ~ 50°C
Operation Humidity 20%~80% RH
Browser IE 7.0 above
Certification Report CE/FCC, ROHS, WEEE
Privacy Mask Yes ( to be firmware upgraded)
Dimension ( x H) 180 x 55
Net Weight 380g
I/O Connectors 1x RJ45 10 BASE-T/100 BASE-TX
1x DC jack
1x Audio line out/1x audio line in
1x Default setting button
1x I/O Terminal connector, 4x DI/1x DO
Package Contents 1x CD (User’s manual and software)
1x Quick Installation Guide
Features

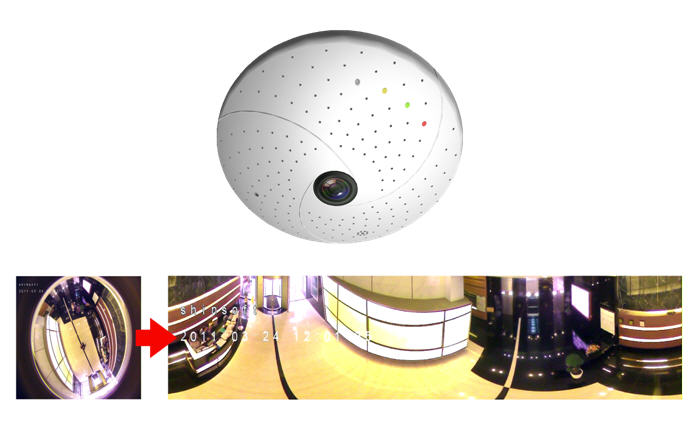

  • 360° source view Quad view 3 PTZ with source Broad view
  • H.264 2 Megapixel Panorama Network Camera
  • Featured with 360° Fish-Eye Lens
  • Advanced e-PTZ
  • H.264 / MJPEG codec
  • Day / Night function with mechanical ICR 9 video layouts for ceiling mount, wall mount and table view applications
  • Two-way audio support
  • Micro SD card for local storage
  • e-PTZ Day / Night
  • H.264 MJPEG Mobile Device
Certificate
  • CE/FCC
  • ROHS
  • WEEE
