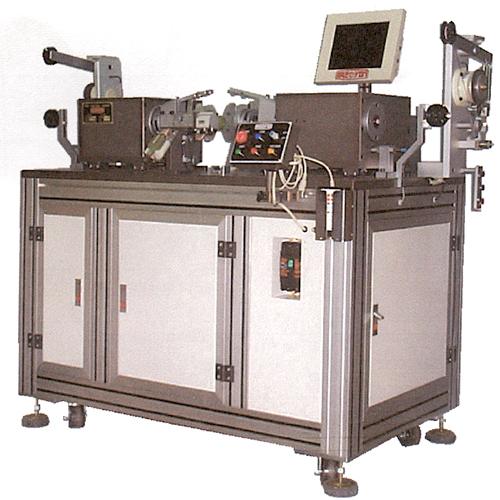

Double Flyer Full Automatic Armature Winding Machine SM-601 CNC

Product ID: SM-601 CNC

Send Inquiry
Application Range:
Starting motors for general housedhold appliance, car and motorcycle starting motos for wiper, and power window of car, and spindle winding processing machine of motor regulator automation machinery, auto control instruments, electrical tools, etc.
  • Diameter of Wire to be Wound: 0.08 ~ 1.2mm
  • Diameter of Spindle: 20 ~ 80mm
  • Width of Armature: 10 ~ 80mm
  • Diameter of Regulators: 12 ~ 50mm
  • No. of Armature Troughs: 6 ~ 36 slot
  • Rotation Speed: 0 ~ 1,500 RPM
  • Auto Acts: Coiling Winding, Coil Hooking and Trough Changing
  • Converting Direction: Clockwise/Counterclockwise set
  • Control System: CNC Control, Computer, Keyboard and 9.4" LCD Chinese Screen
  • Air Pressure: 4 ~ 5KG/cm^2
  • Motor: 1 KwAC Servo Motor x 2, 750 W AC Servo Motor x 1
  • Power Supply: AC 220V 1Dia 50/60Hz
  • Chassis Dimension: 160(L) x 90(W) x 140(H)CM
  • Weight: 420KG (approx)
Adpot CNC teaching model, with step unit; all functions can be changed without professional personnel. Special designed keyboard, floppy disk drive. For next use, just retrieve file name before execution. No need to reset and it is simple and speedy.
