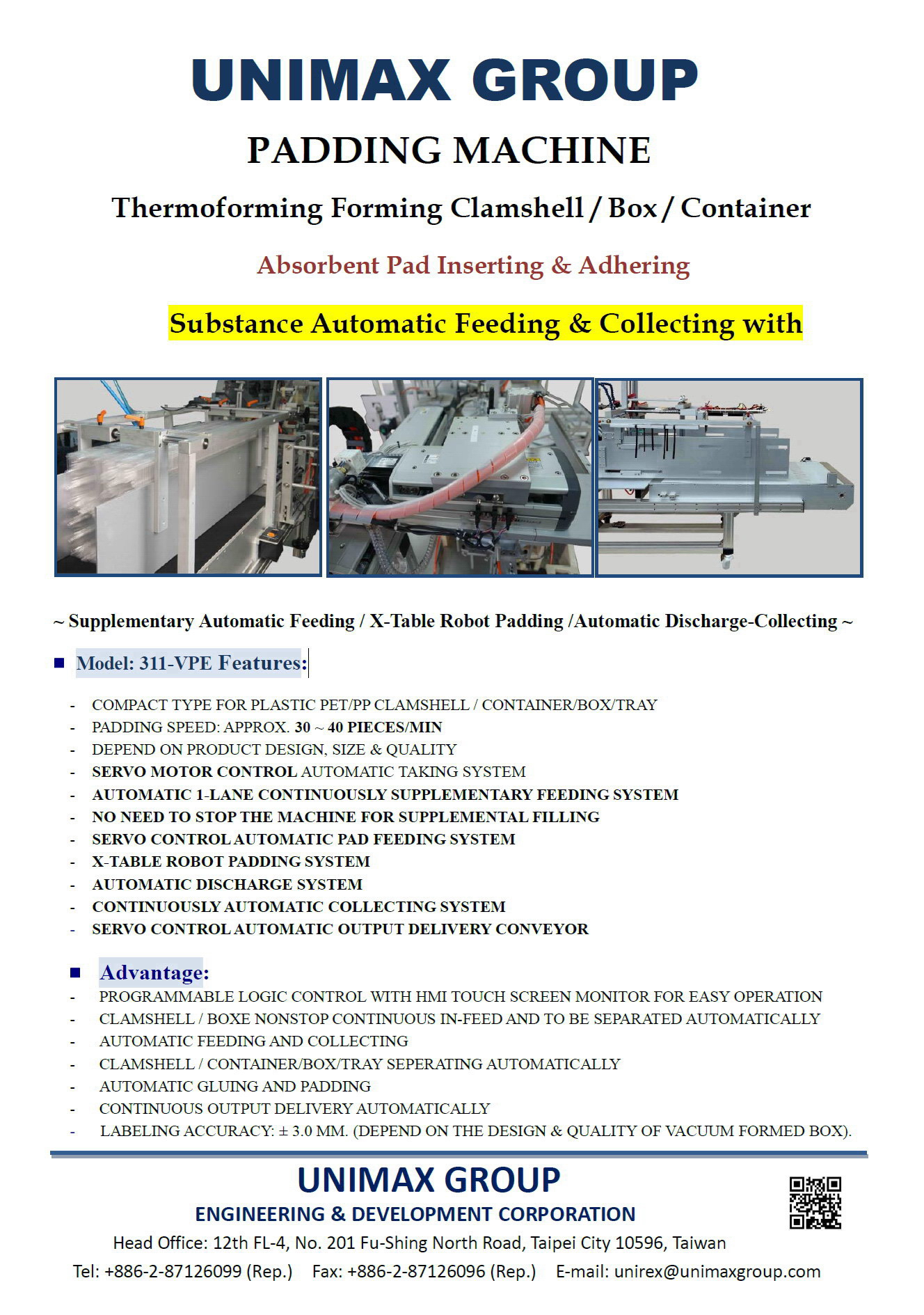

Compact Automatic 311-VPE Absorbent Pad Sticking Machine
Product ID: Compact Thermoforming Padding 311-VPE Series (147)
Send Inquiry￭ Horizontal Stacking Output Delivery Models:
• 311-VPE-R: In-Roll Type Absorbent Pad
• 311-VPE-C: Precut Piece by Piece Stacked Pad
￭ Vertical Stacking Output Delivery Models:
• 311-VPEE-R: In-Roll Type Absorbent Pad
• 311-VPEE-C: Precut Piece by Piece Stacked Pad
￭ Application & Product Example:
- General Food Products Box/Carton/Tray/Clamshell
- Meat Tray/Box/Container/Carton/Clamshell
- Fruit Tray/Box/Container/Carton/Clamshell
- Sea Food Tray/Box/Container/Carton/Clamshell
- Agriculture Products Tray/Box/Container/Carton/Clamshell
• 311-VPE-R:
- In-Roll Type Pad Automatic Cutting-Inserting-Adhering
• 311-VPE-C:
- Precut Stacked Type Pad Automatic Taking-Inserting-Adhering
￭ Control & Operation:
♦ Programmable PLC and Interfaced HMI Control System
♦ Automatic Servo Motor Control Feeding & Collecting System
♦ X-Table Robot Pad Feeding & Padding System
♦ For Plastic Thermoforming Clamshell/Box/Container/Tray
♦ Substance Automatic Continuous Feeding.
♦ No Need to Stop the Machine For Supplementary Filling.
♦ Batched Quantity Automatic & Collecting System.
Specifications
￭ 311-VPE Operation Speed: Approx. 25 ~ 30 ~ 40 Pieces/Min.￭ 311-VPEE Operation Speed: Approx. 20 ~ 30 Pieces/Min. ♦ Equipped with Hot-Melt Glue Applicator. ♦ Equipped with Automatic Sticking-Padding System.♦ Padding Accuracy: ± 3.0 mm. - Depend on The Design & Quality of Thermorforming Product. • Pad Size: Max. 130~250 (L) * 100~160 (W) * 0.5~1 (T) mm. • Machine Size: Approx. 5,000 (L) * 1,000 (W) * 1,800 (H) mm.￭ Economical Manual Feeding & Collecting Model 311-VPES Also Avalaible.Features
• Japan "MITSUBISH" PLC Control System. • Japan "YASKAWA" Servo Motor Control System. • Interfaced 10" Colorful HMI Touch Screen Monitor. • Padding Sensor: Japan "KEYENCE" Optoelectronic Fiber Sensor. • Product Detect Sensor: "OMRON" Optoelectronic Sensor.* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.Main Products
UNIMAX GROUP plastic & packaging machinery department offer a wide range of plastic processing, labeling, assembly, lining machines and packaging automation for different industries. The tissue paper machinery department offer superior converting, wrapping and packaging machines for tissue industry.
