UNIMAX GROUP Engineering & Development Corporation.

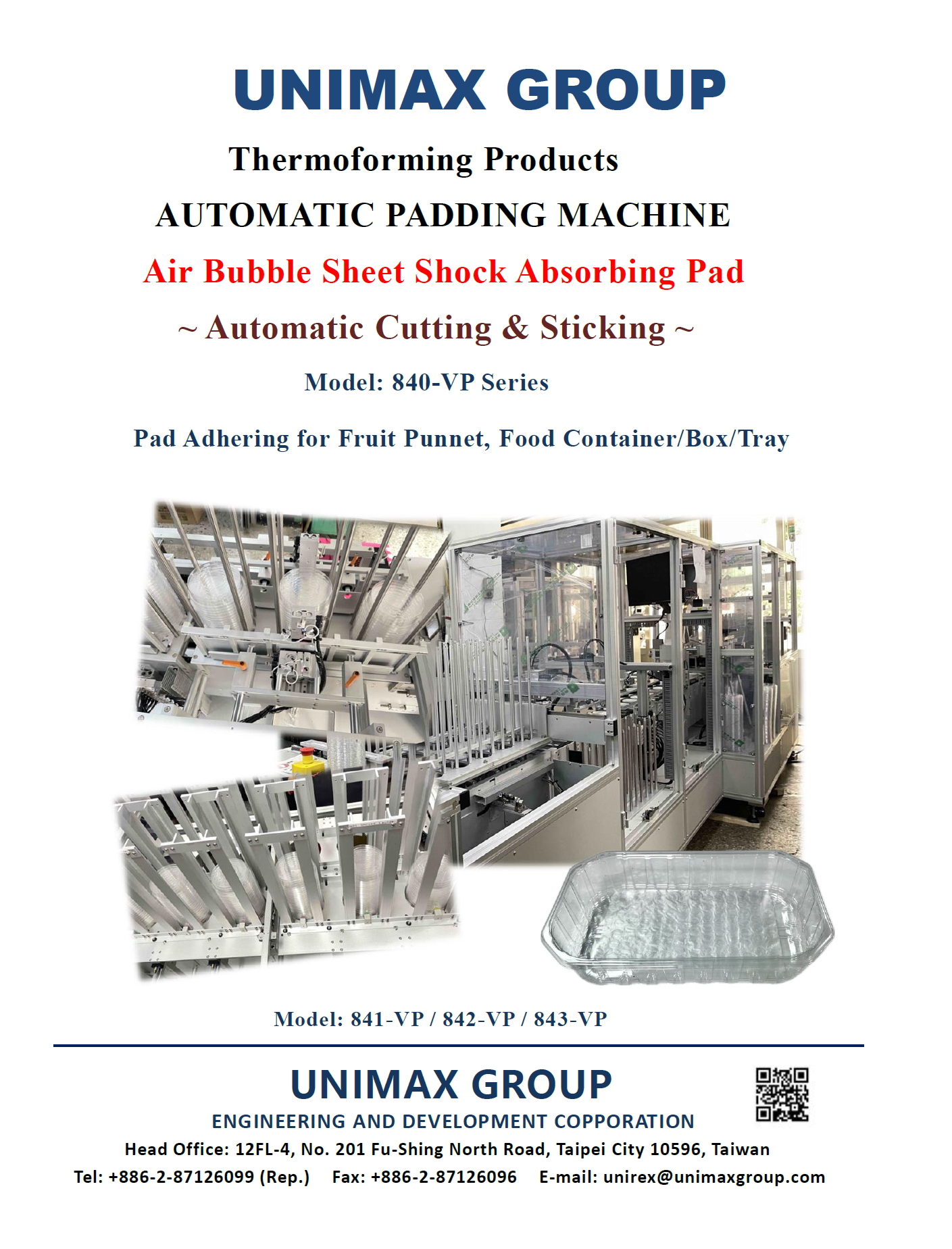

Thermoforming Punnet/Tray Air Bubble Pad High Speed Padding/Sticking Machine 840-VP Series
Product ID: Plastic Thermoforming Padding Sector (148)
Send Inquiry￭ Plastic Thermoforming Padding Sector (148)
Thermoforming Punnet/Tray Air Bubble Pad High Speed Padding/Sticking Machine 840-VP Series
￭ Model: 840-VP Series
￭ Application & Product Example:
- Fruit Punnet
- Strawberry Box/Punnet
- Food Products Punnet/Tray/Box/Carton
- Agriculture Products Punnet/Tray/Box/Container/Carton
♦ In-Roll Type Air Bubble Sheet
♦ Automatic Servo Motor Control Pad Feeding System
♦ Automatic Servo Motor Control Pad Cutting System
♦ For Plastic Thermoforming Punnet/Tray /Box/Container
♦ Automatic Continuous Feeding.
♦ No Need to Stop the Machine For Supplementary Filling.
♦ Batched Quantity Automatic & Collecting System.
Specifications
￭ Specification:￭ Operation Speed Model 841-VP: Approx. 1.3 ~ 1.6 PCS/Sec * 1-Lane (Approx. 78~96 PCS/MIN) Model 842-VP: Approx. 1.3 ~ 1.6 PCS/Sec * 2-Lane (Approx. 156~192 PCS/MIN) Model 843-VP: Approx. 1.3 ~ 1.6 PCS/Sec * 3-Lane (Approx. 234~288 PCS/MIN) ♦ Equipped with Automatic Peel-off & Taking System. ♦ Equipped with Servo Control 3-Jaw Roller Cutting System. ♦ Equipped with "NORDSON" Hot-Melt Glue Applicator. ♦ Equipped with High Speed Sticking-Padding System. • Product Size: Max. 180 ~ 200 (L) * 100~130 (W) * 30~50 (H) mm. • Pad Size: Max. 160 ~80 (L) * 120~80 (W) mm. • Pad Roll: ø 600 (O.D.) * 76 (I.D.) mm. • Machine Size: - Model 841-VP: Approx. 8000*700*2000 MM- Model 842-VP: Approx. 8000*900*2000 MM- Model 843-VP: Approx. 8000*1100*2000 MMFeatures
￭ Features:♦ Operation: Automatic Peel-off, Feeding, Padding, Collecting• Japan "MITSUBISH" PLC Control System. • Japan "YASKAWA" Servo Motor Control System. • Interfaced 10" Colorful HMI Touch Screen Monitor. • Padding Sensor: Japan "KEYENCE" Optoelectronic Fiber Sensor. • Product Detect Sensor: "OMRON" Optoelectronic Sensor.* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.Main Products
UNIMAX GROUP plastic & packaging machinery department offer a wide range of plastic processing, labeling, assembly, lining machines and packaging automation for different industries. The tissue paper machinery department offer superior converting, wrapping and packaging machines for tissue industry.
