Multi-door Entrance access control board
Click here for details.

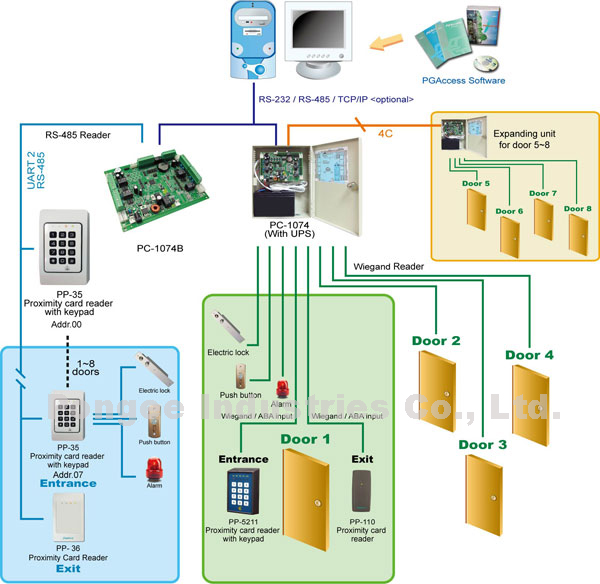

♦ The PC-1074B is designed for high-security access control and real-time monitoring environments from medium size to complex multi-site installations.
♦ It is an independent processing 4 doors access control package with metal enclosure, backup battery charger as an efficient space saving design.
♦ Suitable for applications with up to 64,000 users across a modular 1024 doors, allowing maximum flexibility for securing a growing enterprise. Each unit supports 8 Wiegands or RS-485 ports for entry & exit control.
♦ The system support Bar Code, Magnetic Stripe, Biometric and Smart Card Readers thru. Wiegand or ABA interface.
♦ Designed with 4 DI (digital input) and 4 DO (digital outputs) for light, air conditioning, surveillance, fire prevention or urgent rescuing system control.
♦ It is an independent processing 4 doors access control package with metal enclosure, backup battery charger as an efficient space saving design.
♦ Suitable for applications with up to 64,000 users across a modular 1024 doors, allowing maximum flexibility for securing a growing enterprise. Each unit supports 8 Wiegands or RS-485 ports for entry & exit control.
♦ The system support Bar Code, Magnetic Stripe, Biometric and Smart Card Readers thru. Wiegand or ABA interface.
♦ Designed with 4 DI (digital input) and 4 DO (digital outputs) for light, air conditioning, surveillance, fire prevention or urgent rescuing system control.
Specifications
- Board Dimensions:160(L) x 115(W) x 24.5(H) mm
- Weight:480g ± 5%
- Power supply:
- DC 12V +10%, 1A
- Consumption current 0.05 A (not include power requirement for lock & alarm)
- Transmission rate:9,600 bps, N,8,1
- Serial interface:RS-485
- Events:32,000 standard, up to 64,000
- Card capacity:15,000 standard, up to 64,000
- External reader: Wiegand 26, 34bits, RS-485 reader
- Time zone:8 personal time zones, 8 time zones for auto operation mode
- Memory:6 MB, EEPROM
- Operation temperature:0°C ~ 50°C
- Humidity:5%~95%
- We reserve the right to change the specification without notice or obligation!
Features
- Online Network with on board selectable RS-485/RS-232/RS-422 and optional TCP/IP Ethernet.
- Up to 15,000 cards with 32,000 events. Optional 64,000 cards with 64,000 events.
- Multi technology of badges include proximity, smart card, biometric, hand free active card, mag. cards, etc.,
- 8 wiegand readers for 4 doors. expandable to 16 wiegand readers for 8 doors. Optional 8 or 16 RS-485 readers for 8 doors by 2nd RS-485 port.
- 4 digital inputs and 4 digital outputs with expansible 24/48/64 relays output for floors control.
- Global (4 or expandable 8 doors) or single doors APB without PC autonomous decision at local level without degradation and removable connectors
- Optional baud rate from 2,400 to 38,400 with optional encryption for communication security.
