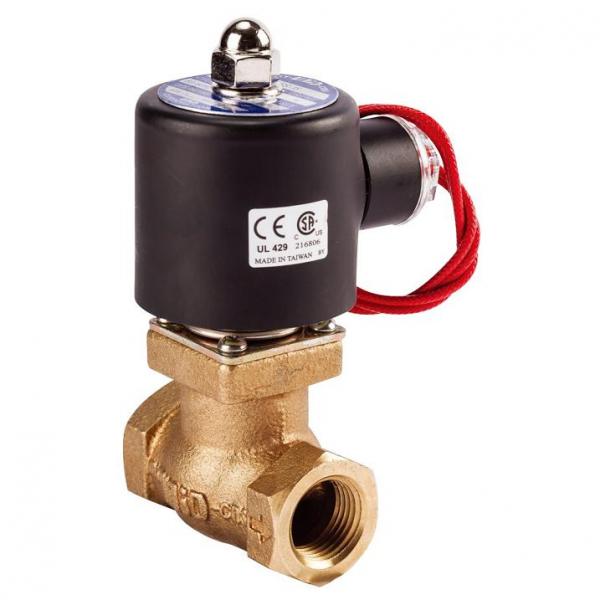

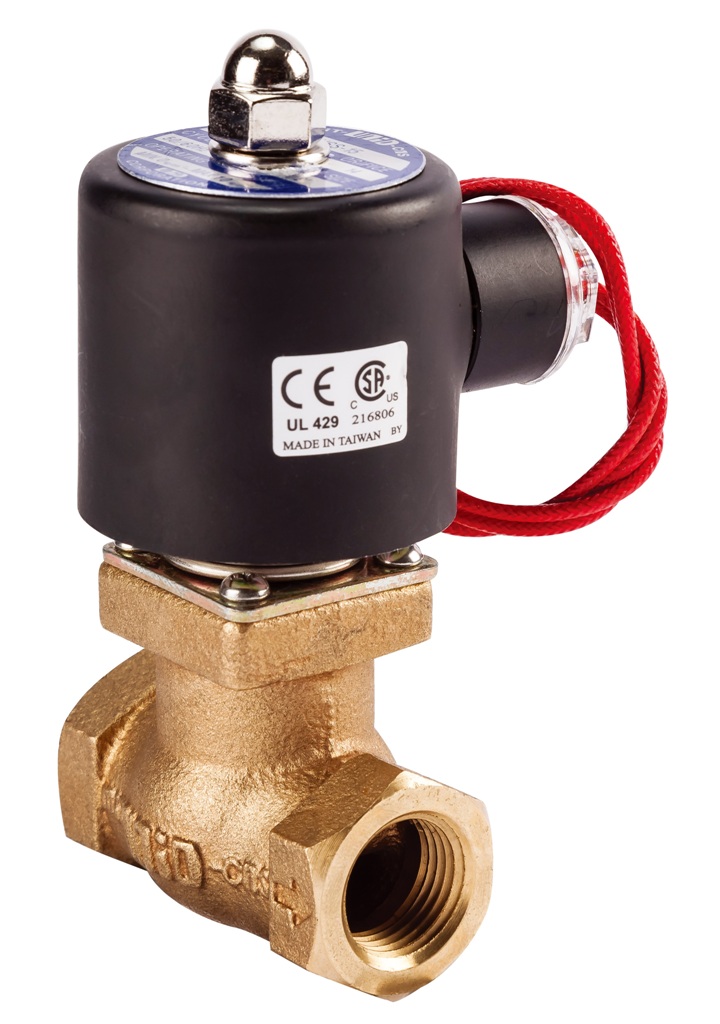

Solenoid Valve-Normally Closed Type
Product ID: USS-15Send Inquiry
．USS series is direct-acting, pilot operated piston, conductive, and normally closed
(NC) 2/2 way solenoid valve.
．Specially suitable for frequent operation
．Availability of fluid type：water, air, steam, light oil
．Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
．To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
．AC voltage tolerance：±10%；DC voltage tolerance：±1%
．It should be installed horizontally；vertical installation is not advisable.
Not Suitalbe For Fluid As Below：
．Liquid status when it is high temperature；solid status when it is cool.
．Viscosity over 50cst
