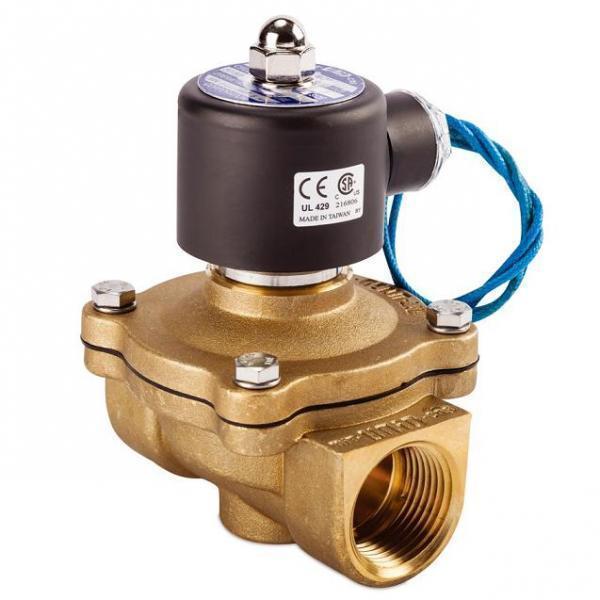

Solenoid Valve-Normally Closed Type
Product ID: UW-10~50Send Inquiry
．UW series is direct, multiplex, connected diaphragm, conductive and normally
closed (NC) 2/2 way solenoid valve.
．Able to be operated directly under low pressure
．Availability of fluid type：water, air, light oil
．Acceptable for customization Viton (130℃) , Silicone (130℃) and EPDM (130℃)
．Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
．To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
．AC voltage tolerance：±10%；DC voltage tolerance：±1%
．It should be installed horizontally；vertical installation is not advisable.
Not Suitalbe For Fluid As Below：
．Liquid status when it is high temperature；solid status when it is cool.
．Viscosity over 20cst
