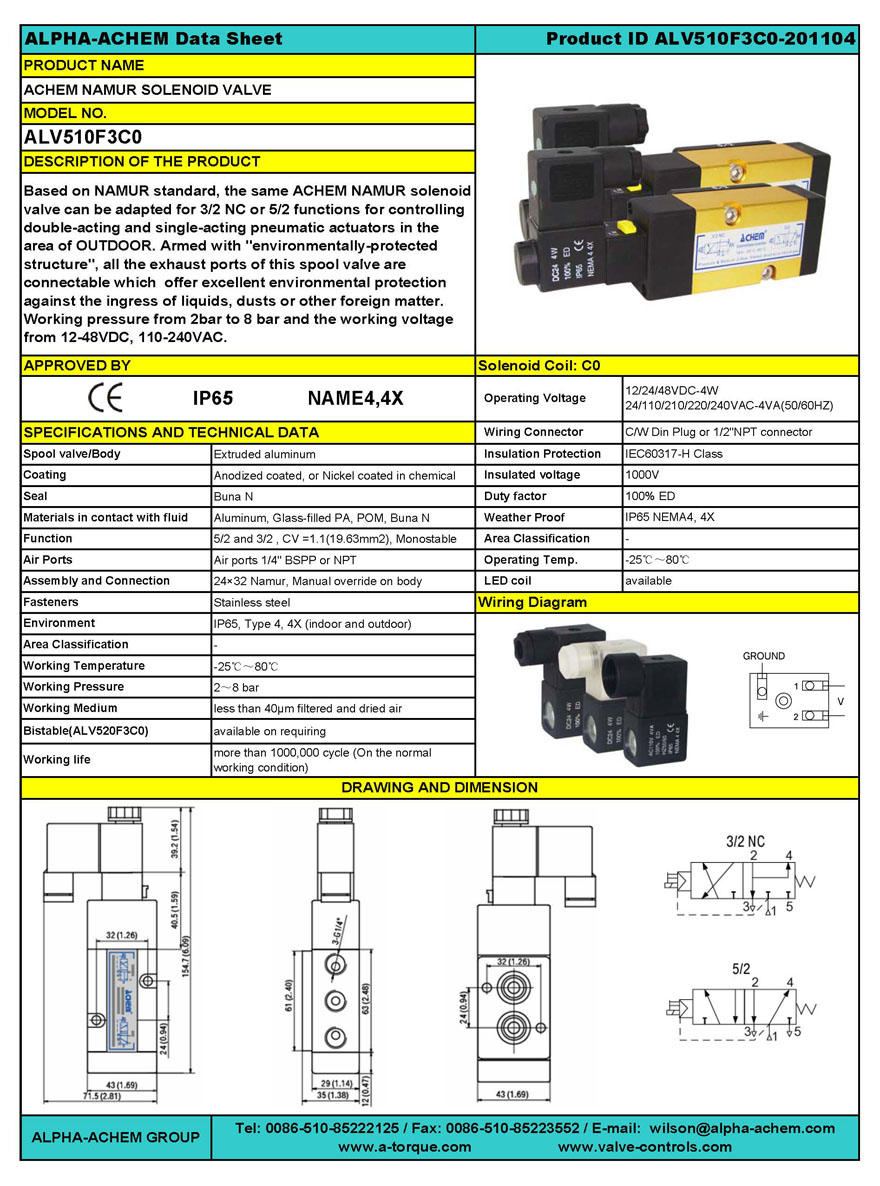

NAMUR Solenoid Valve

Product ID: ALV510F3C0

Send Inquiry

ACHEM ALV series is designed and manufactured by us based on advanced air control technology and our special patent technology. Armed with "environmentally-protected structure," the NAMUR interface offers environmental protection against the ingress of liquids, dusts or other foreign matter and provides a constant self cleaning action within every position shift enabling the solenoid valves to achieve over a million trouble-free cycles.

All the exhaust ports of this solenoid valve are connectable, providing better environmental protection. In the family of ALV series, the stainless steel, aluminum spool valve and the explosion proof coils can be used for the application in any hazardous location and anywhere in the World.

Following are the main features of the ACHEM ALV series:

-Suitable for use of 3/2 NC or 5/2 functions to control double-acting and single-acting pneumatic actuators.

-Suitable for pilot operated with single/dual (mono/bi-stable) coils and low watt miniature pilot solenoid valve.

-Suitable for use of standard coil or various flame-proof and intrinsically safe coils certified for use in all hazardous areas (Class I, Div. 1&2, Group A, B, C and D, Ex d IICT6, Ex ia CT6 and Ex m II T6)

-Suitable for use of high temperature (150℃) and cold temperature (-40℃) applications on requiring.

Model No.ALV510F3C0
Product Line ALV Series Namur Valve Controller
Spool Valve/Body Extruded aluminum with Anodized coated, Buna Sealed
  5/2 and 3/2, CV=1.1, Air ports 1/4" BSPP or NPT
Connection 24x32 Namur connected, Manual override on the Body.
Coil(C0) 12/24/48VDC-2.8W, 48/110/210/220/240VAC-4VA
Working Environment -25℃~80℃, Outdoor and Indoor
Working Medium 40 micron filtered and dried air at 2~8Bar.
Approved by CE NEMA 4, 4X
