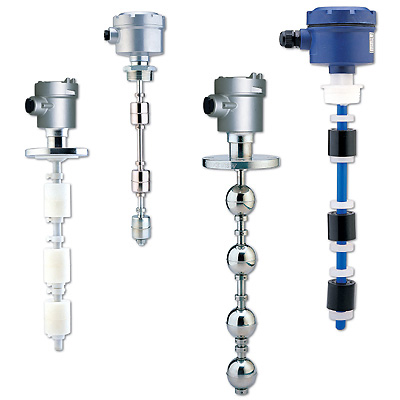

Magnetic Float Level Switch

Product ID: F(C)D

Send Inquiry
The single unit or multiple reed switch units are housed tightly in stainless steel or engineering plastic stem, and the permanent magnet is interlcircled into the middle of the specified float ball(s). You can mount the float ball to penetrating through the stem, then the liquid buoyancy will deliver the float ball up and down at the specified position by graduating rings. When the float internal magnet approaches the reed switch, it will actuate the reed switch contact point to create an open or close circuit. We can apply such on-off output signals to reach liquid level controlling and monitoring purpose. The figures below show the float orientations on N.O. (Normal Open) and N.C. (Normal Close).

Product Introduction

  • PP, PVDF materials are suitable for corrosive environment, SUS304 / SUS316 can be applied in high-temp & high-pressures tank.
  • Various housing materials are available such as PP, Aluminum, Stainless Steel (explosion-proof), all types comply with IP65 protection.
  • Contact Rating: 50W/250VAC SPST or 30W/200VDC SPDT
  • Screw: NPT, PF and BSP; Connecting Flange: JIS, DIN and ANSI
  • Marine grade approval and Ex-proof approval.
  • Multi-point control, easy installation, cost saving.
  • Special specification or custom design is acceptable.
