Elevator Control, Lift access control system

Product ID: PP-6750V

Send Inquiry
PP-6750V is an intelligent time recording terminals designed to meet variant applications in time attendance and access control, lift control & ARM/DISARM security requirements. Each terminal can be operated independent simply or through PC/Internet adapter PC-T100 to fulfill the multiple doors access system. The recording terminal includes nearly all the necessary functions for time recording and access control with bountiful manual & PC executed commanded functions as well as friendly operation commanded for manual operation.

Dual frequency (EM / Mifare) time attendance recorder and access controller. (Optional)

Specifications
  • Dimensions:137(L) x 85(W) x 29(H)mm
  • Weight:340g± 5%
  • Power supply:DC 12V±10%, 80mA~100mA(not include power requirement for lock & alarm)
  • Transmission rate:Default 9,600 bps N,8,1(2,400/4,800/19,200bps)(38,400)
  • Operating temperature:0°C ~ 70°C
  • Operating humidity:10%~90%
  • Keypad:3 × 4 keypad for system programming, pass word entry or duty code selection.
  • Password:Programmable 4 digits PIN for each person
  • Serial interface:RS-485 & RS-232
  • Serial output:
    • 1. For connection with serial printer.
    • 2. To drive DDR (digital door relay) for secure assess control function.

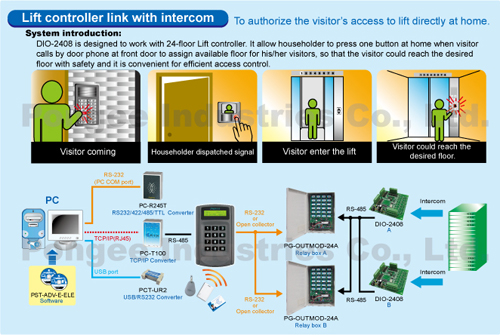

    • 3. To drive 8/24/48/64 relay output modules for lifts access control
    • 4. Bountiful application functions requested by customer
  • Events / Card capacity:
    • (1) K Series: 1,000 card capacity,500 events.
    • (2) L Series: 2,000 card capacity,1,000 events.
    • (3) M Series: 30,000 card capacity,10,000 events.
    • (4) N Series: 11,000 card capacity,32,000 events.
    • (5) P Series: 11,000 card capacity,8,000 events.
    • (6) X Series: 32,000 card capacity, 32,000 events.
    • Other capacity combination requested by order
  • Card standard:EM 125KHz / Mifare 13.56MHz(ISO 14443A or ISO 14443B)(Depending on order)
  • Wiegand 26/34 bits port for any kind of reader
  • Support customized card.
  • External reader:With one or optional two port for external Wiegand (26/34 bits definable by command) & ABA input(by order)
  • Mifare® is a registered trade mark of Philips.
  • We reserve the right to change the specification without notice or obligation!
Features
  • Features for time recording application:
    • Selectable batch or real time operation mode.
    • 79 duty codes, duty name defined by PC.
    • Possible in 8 digits ID for time attendance recording.
    • Totally 192 alarm schedules (8 schedules per hour) dry contacts output for periodic belling.
    • Could collect data by real time or one by one events or massive block dump.
    • High capacity with 8 digits card number. ( Either checking or without checking personal map )
    • 16*2 rows of LCD display with 8 digits for displaying year, month, day, week, time & events counter.
  • Main features for access control application:
    • •Up to 90 codes 4 digits door PIN.
    • •Setting door monitoring time becomes second unit or minute unit. Up to 98 minutes.
    • •Setting door release time becomes second unit or minute unit. Up to 97minutes.
    • •System parameters and personal access map can be downloaded by PC or manually programmed through keypad.
    • •The personal access map is consisted of card ID, staff number and name, PIN and Time Zone Status, expiry date and Anti-passback.
    • •Excellent multiple operation modes :(1) Card only (2) Card + PIN (3)Door PIN only (4)Card Number+PIN (5)Free access (6) Automatic operation mode by time zones.
    • •All operation modes with PIN are supported by selectable duress function. Also, keypad is lockable to become dumb.
    • •Individual personal access map can be edited by block range add or delete card in group basis by on-lined PC or by manual thru. single / block range card number or by directly reading card thru. learning mode.
    • •Selectable immediate or batched conditional sorting and then printing out events thru. serial output interface.
    • •With complete door release, held monitoring and intruded alarm period and error trials.
    • •Supports 8/24/48/64/96 floors lift access control.
    • •Full APB (anti-passback), time zone.
    • •Could dump all personal map in system by single PC or manual command.
Certificate
  • CE
